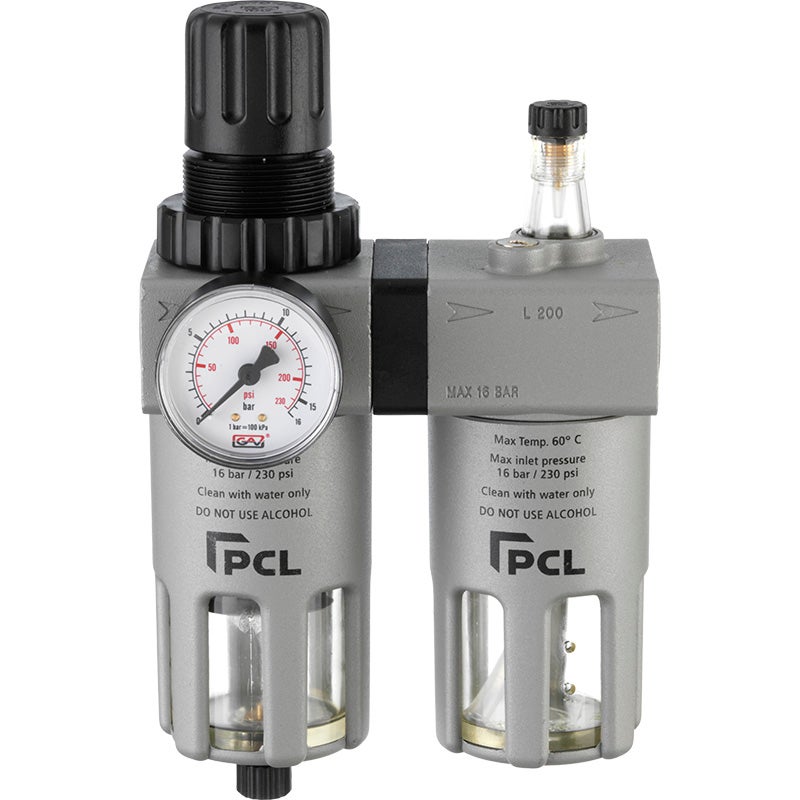

Air Treatment Filter/Regulator/Lubricator 0-170 psi/0-12 bar, 1/2 Ports

PCL's FRL units are designed to control output air pressure, eliminate moisture and contaminants from the air flow and to lubricate tools during use. Adding a PCL Air Treatment unit into an air line efficiently filters to 10 microns. Featuring polycarbonate bowls, allowing the user to easily monitor the element's condition and the collected liquid's level. The bowl is surrounded with protective metal as a safety measure to protect the user in case of excessive pressures, temperatures, or aggressive chemicals.

Features & Benefits

Manual/semi automatic drain
Locking device
Complete with wall bracket and pressure gauge
Replacement spares also available: SPRFR200 Replacement Filter and ATS12 Replacement Bowl Kit

Specifications

More Information
Shipping Weight (kg)	1.458
ean	5014875890531
Brand	PCL
Air Treatment Type	Filter-Regulator-Lubricator
Filtration Size	10 µm
Inlet Connection	1/2 in
Outlet Connection	1/8 in
Max Inlet Pressure	16 bar
Drain Type	Manual / Semi Automatic
Oil Capacity	50 ml
Flow Rate	5000 l/min @ 6 bar supply
Temperature	-10°C to 60°C
Adjustment	0 - 12 bar
Lubrication Adjustment	300-600 l/min
