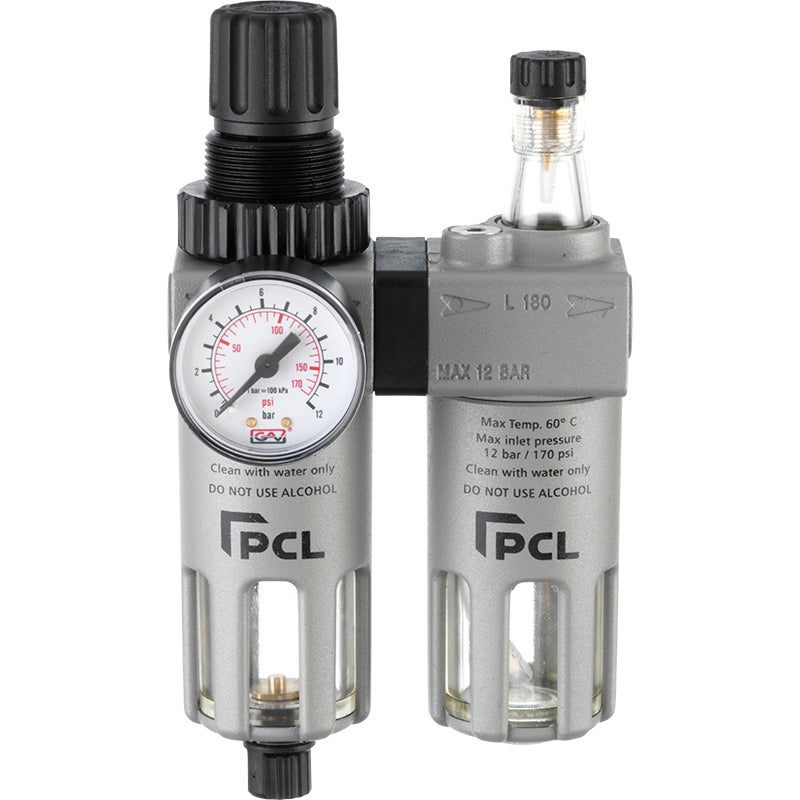

Air Treatment Filter/Regulator/Lubricator 0-145 psi/0-10 bar, 1/4 Ports
PCL's FRL units are designed to control output air pressure, eliminate moisture and contaminants from the air flow and to lubricate tools during use. Adding a PCL Air Treatment unit into an air line efficiently filters to 10 microns. Featuring polycarbonate bowls, allowing the user to easily monitor the element's condition and the collected liquid's level. The bowl is surrounded with protective metal as a safety measure to protect the user in case of excessive pressures, temperatures, or aggressive chemicals.
- Manual/semi automatic drain
- Locking device
- Complete with wall bracket and pressure gauge
- Replacement spares also available: SPRFR180 Replacement Filter and ATS6 Replacement Bowl Kit
| Shipping Weight (kg) | 0.611 |
|---|---|
| ean | 5014875890524 |
| Brand | PCL |
| Air Treatment Type | Filter-Regulator-Lubricator |
| Filtration Size | 10 µm |
| Inlet Connection | 1/4 in |
| Outlet Connection | 1/8 in |
| Max Inlet Pressure | 12 bar |
| Drain Type | Manual / Semi Automatic |
| Oil Capacity | 30 ml |
| Temperature | -10°C to 60°C |
| Adjustment | 0 - 10 bar |
| Lubrication Adjustment | 300-600 l/min |
