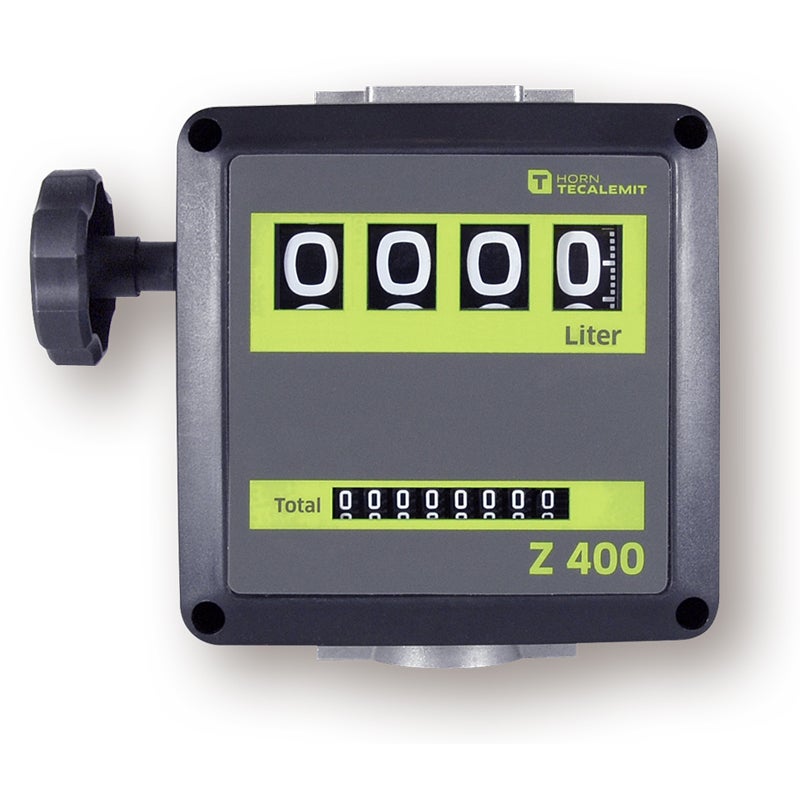

Z400 Flow Meter, Direction from Bottom to Top
Flow meter for streaming liquids according to the measurement principle of a swashplate!
The Z 400 is a mechanical meter with nutating disc. The nutating discs moved by the delivered medium and transmit the turning motion – in proportion to the liquid flow via a gear mechanism to the visual indicator mechanism.
Z400 Mechanical Flow Meter can be used with diesel, gas oil and antifreeze (concentrate).
- For diesel, gas oil and antifreeze (concentrate)
- Plastic/aluminium housing
| Shipping Weight (kg) | 1.972 |
|---|---|
| ean | 4031109005616 |
| Brand | TECALEMIT |
| Connection Thread | 1 in |
| Flow Direction | ↑ bottom to top |
| Nominal Pressure | 3.5 bar / 50.7 psi |
| Pulsed Output | No |
| Flow Rate | 20 - 120 l/min |
