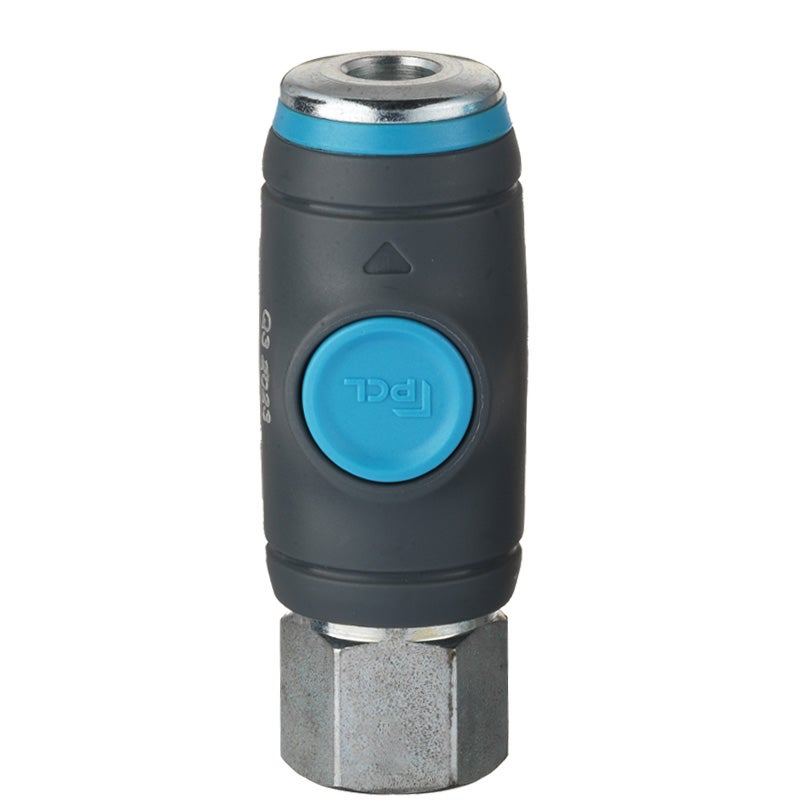

Standard Push Button Safety Coupling, Female Thread Rp 1/2

Product Information

Built by hand and 100% individually tested for guaranteed reliability in PCL's Sheffield factory, the new UK Standard Push Button Safety Coupling provides a two-stage, self venting release as reccomended by the Health and Safety Guide HS(G)39, which fully vents the system on first press, then releases the adaptor on the second one, eliminating the dangers of hose whip, creating a safe compressed air environment.

This lightweight but robust "Made in Sheffield" coupling comes with a 5 year warranty.

Features & Benefits

Designed-engineered by the only UK Manufacturer of Safety Couplings
Two-stage self venting release eliminating the dangers of hose whip
Compatible with Standard Adaptors
Hardened machined steel parts
Lightweight & robust composite outer body
Date Stamp - Production date for tracking and quality
British Standard Profile
Conforms to ISO 4414:2010

Specifications

More Information
Shipping Weight (kg)	0.192
ean	5014875169835
Brand	PCL
Coupling Style	Coupling
Thread Type	Female
Thread Size	Rp 1/2
Nominal Bore	4.8 mm
Flow Rate	43 cfm @ 100 psi
Max Working Pressure	10 bar / 145 psi
Temperature	-20°C to 70°C
Interchange	Rectus 19, Prevost BSI 06
