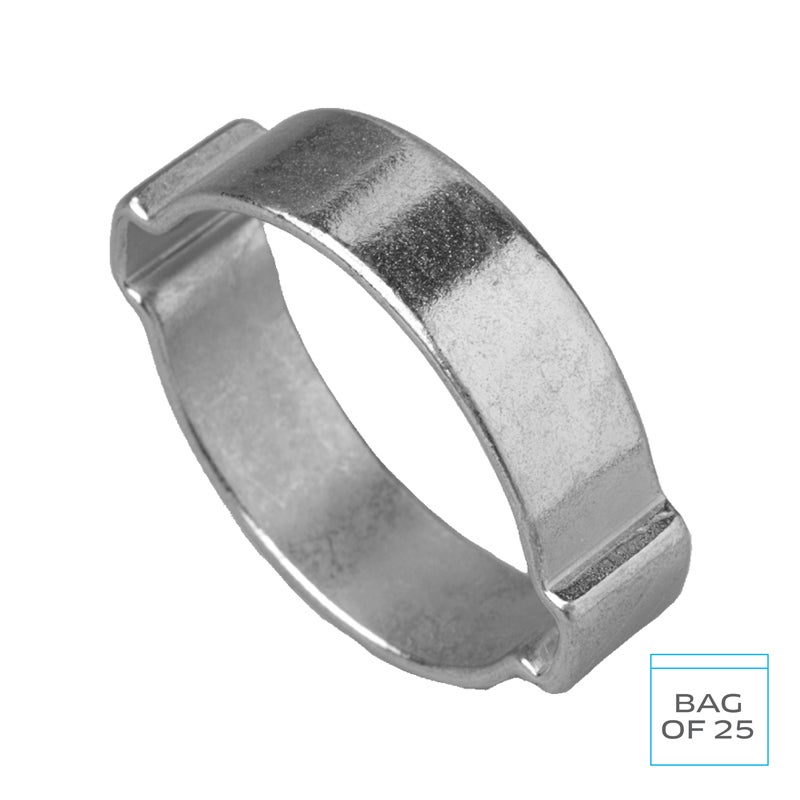

Jubilee O Clips Size 3134 (31-34mm Clamping Range) Bag of 25

Jubilee® 'O' Clip 2-Ear clamps are widely used for maintenance and OEM applications. Mainly used on air, fluid, gas and steam lines and also suitable for low pressure hydraulic applications.

The absence of a screw mechanism allows Jubilee® 'O' Clips to be useful on extremely small hoses. The tamper proof nature of the fitting may also make the Jubilee® 'O' Clips suitable for certain applications where there may be a risk associated with any interference to the fitting. Sometimes affectionately referred to as "Lemon Clips" due to their shape and also referred to as double ear clips and 2-ear clips.

Side closing pincers are used to crimp the ears of the clamps and affect a proper seal.

2-ear clamps are best installed by closing one ear fully first, the second ear is then closed so that the first ear opens slightly (gap to be approximately 1.5mm). This builds a resilient strength into the clamp in a spring-like action to hold against pressure, vibration and hose shrinkage due to temperature changes or ageing.

  • Useful on small hoses
  • Mainly used on air, fluid, gas and steam lines
  • Suitable for low pressure hydraulic applications
More Information
Shipping Weight (kg) 0.365
MPN OC3134MS
ean 5016598170907
Brand Jubilee
