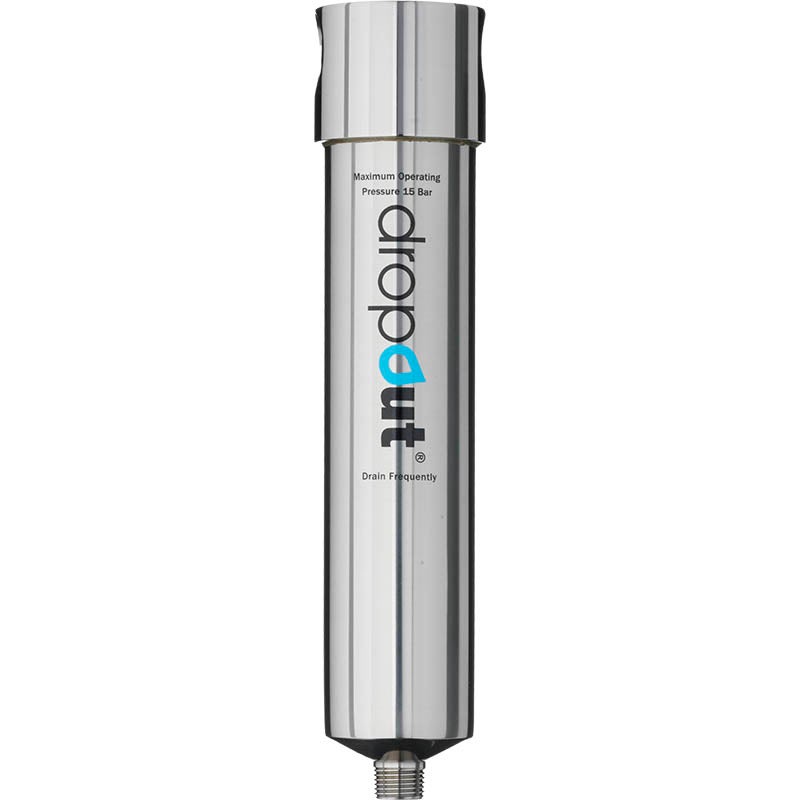

Dropout Water Separator Stainless Steel, 1,350 l/min, 3/4 Ports

The sealed for life Stainless Steel Grade 304 Dropout® Water Separator is available in a range of port sizes and flow rates. Comes complete with a wall bracket and drain valve for manual drainage.

Dropout® offers an extremely high performance all-in-one solution. Its unique patent design allows the unit to efficiently remove 99.9999% of liquid (water & oil) and 99% solid particulate down to 1 micron at a wide range of flow rates without mains power or costly replacement filter elements.

Recommended for use where there is a high concentration of water in the air supply, Dropout® units are frequently used in paint and refinish environments as an alternative to dryers, where moisture-free air is essential.

  • Guaranteed 99.9999% liquid water removal
  • Particulate removal to 1 micron
  • No increase in pressure drop caused by blocked filters
  • Instantaneous recovery from pulsed flows or stop start
  • No requirement for replacement filter cartridges
  • 100% sealed for life Stainless Steel Grade 304 housing
  • Low cost of ownership and maintenance free
  • Complete with wall bracket and drain valve

Certified to: ISO 12500 parts 3 & 4
ATEX Mark: Ex II 2G IIC T6 Gb

More Information
Shipping Weight (kg) 2.1
ean 5014875130842
Brand Dropout
Approvals

Certified to: ISO 12500 parts 3 & 4
ATEX Mark: Ex II 2G IIC T6 Gb

Air Treatment Type Filter
Filtration Size 1 µm
Inlet Connection 3/4 in
Outlet Connection 1/2 in
Max Inlet Pressure 15 bar
Drain Type Manual
Flow Rate 1350 l/min / 47.7 cfm
Temperature 0°C to 80°C
